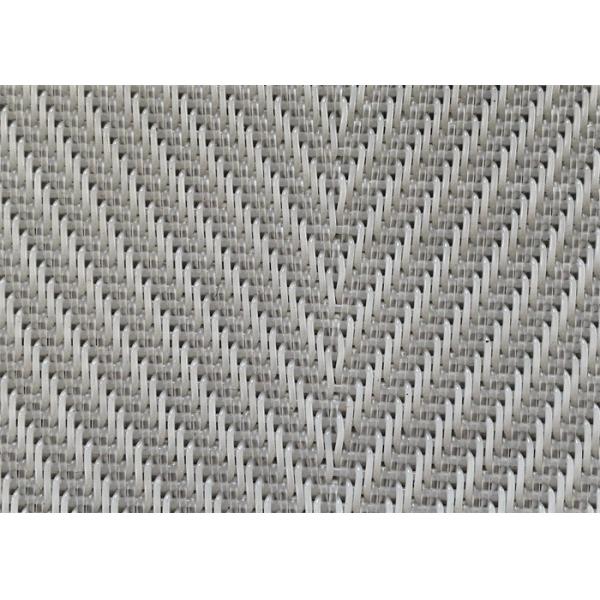

Steel Clamp Interface Polyester Sludge Dewatering Belt For Filtered Sludge
Polyester Sludge Dewatering Belt Description
Our filter belt is available in widths of up to 8.2 meters and lengths of up to 200 meters
This kind of polyester mesh belt is specially designed for waste water treatment systems
as a sludge dewatering belt. Sludge dewatering belt is mainly used for belt type press filter
rubber belt vacuum filter horizontal belt vacuum filter especially for the drying process in paper milll
also used at critical stages of particle board medium density fibreboard (MDF)
manufacture of ceiling tiles, etc.Sludge dewatering belt is made of round or flat
threads,excellent permeation of air and water while keeping out the sludge
Applicable to the municipal sewage sludge,sludge filtrationenterprises
press paper mill pulp,the use of concentrated fruit juice squeezing and other special industry
Due to its unique structure,the sludge is easy to peel off and clean after
the sludge is pressed and filtered,not sticky mud
| name | Polyester Sludge Dewatering Belt |
| Keyword | Urban Swage Treatment |
| material | polyester |
| manufacture method | weave |
| warp filament diameter | 0.90mm |
| weft filament diameter | 1.1mm |
| warp density | 12.8 thread/cm |
| surface tensile strength | 1600N/cm |
| joint tensile strength | 900N/cm |
| working temperature | over 100℃ |
| application | widely used in wastewater treatment of chemical industry, pharmaceutical process, etc. |
| Model | Wire Diameter | Density Root/10cm | Air Permeability m3/m2h | Net Weight g/m2 | Strength kg/cm | Used in |
| Wrap | Weft | Wrap | Weft |
| 14803 | 0.7 | 0.8 | 142 | 47-60 | 3900-8500 | 1400 | 240 | Sludge Squeeze juice |
| 16803 | 0.7 | 0.8 | 156 | 46-50 | 6000 | 1400 | 265 | Sludge Squeeze juice |
| 16904 | 0.75 | 0.9 | 156 | 47 | 8000 | 1800 | 280 | Iron and steel industry sludge dewatering Living slude dewatering |
| 121054 | 0.9 | 1.05 | 120 | 42 | 8000 | 1650 | 340 | Iron and steel industry sludge dewatering |
| 22903 | 0.5 | 0.9 | 220 | 50-55 | 9000 | 1200 | 200 | Living slude dewatering |
| 20703 | 0.5 | 0.7 | 200 | 70 | 10000 | 1000 | 185 | Living slude dewatering |
| 24504 | 0.5 | 0.5 | 240 | 130-140 | 8500 | 1180 | 220 | Paper dry network |
| 8903 | 0.9 | 0.9 | 78 | 50 | 8500 | 1430 | 210 | industrial sludge dewatering |
| 16704 | 0.7 | 0.7 | 160 | 90 | 12000 | 1350 | 165 | Building materials dewatering |
| 26908 | 0.5 | 0.9 | 26.4 | 69-75 | 5000 | 1364 | 240 | Viscosit of the larger |
| 12 Mesh | 0.75 | 0.8 | 47 | 48 | | 650 | 94 | Paper pulp washing |
Polyester Sludge Dewatering Belt Product Features
| Model:22903 16903 24908 24808 12904 |
| It has high beaking elongation tolerance |
| It has high temperature resistant under 180 degree |
| This fabric belt is widely used in all kinds of industries,such as printing |
| Polyester spiral link dryer fabric belt is also used in papermaking industry |
| 100% polyester monofilament |
Polyester Sludge Dewatering Belt Product Advantage
1 Exact tracking thanks to high dimensional and form stability
2 Electrostatic discharge
3 Edge coating and precise edge trim
4 Laterally stable, tensile, and rugged
How to choose Polyester Sludge Dewatering Belt
- Polyester filter belt is widely used inMineral industry -mining sieving mineral separation
- gold benefication Paper industry-paper pulps making, sulplate pulppacking and
- cardboard pulp Dryer -Textile yarn,Others -tailings disposal, colliery, food, medicine etc
Polyester Sludge Dewatering Belt Packing detail
1 We always use poly bag for the goods which ship by air, so that customer can save freight free
2 Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping
3 There also have some customer request us to use the carton to packing their goods
4 We can according to customer's requirement
